LSS ACCESSORY
LSS ACCESSORY
LSS (Pan Cake Load Cell) ACCESSORY

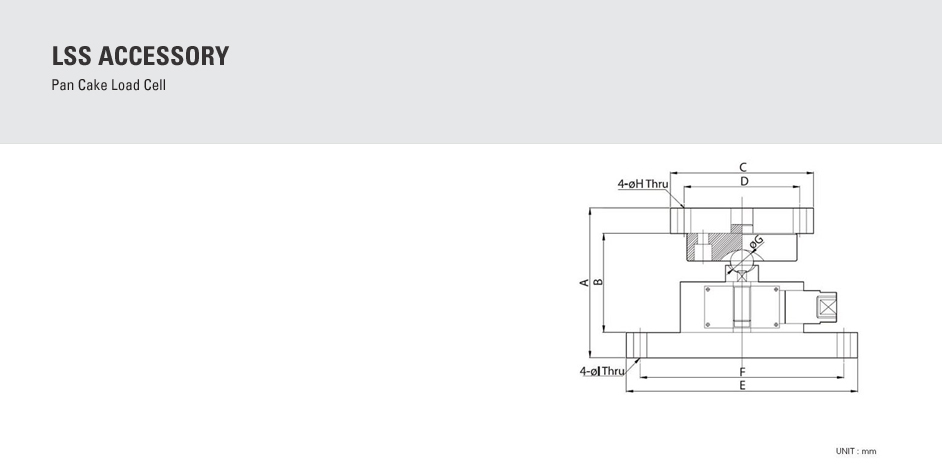

| Capa | A | B | C | D | E | F | øG | H | I |
| 1tf | 136 | 90 | 130 | 105 | 210 X 130 | 185 X 105 | 21 | 12 | 12 |
| 2tf | |||||||||
| 3tf | |||||||||
| 5tf | 145 | 99 | 30 | ||||||
| 10tf | 166 | 113 | 160 | 125 | 30 | 14 | |||
| 20tf | 196 | 143 | 200 | 160 | 30 | ||||
| 30tf |

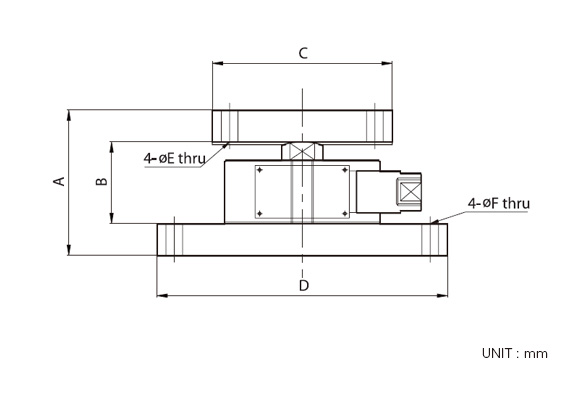

| Capa | A | B | C | D | E | F |
| 1tf | 105 | 59 | 130 | 210 X 130 | 12 | 12 |
| 2tf | ||||||
| 3tf | ||||||
| 5tf | 107 | 61 | ||||
| 10tf | 140 | 80 | 160 | 160 | 14 | 14 |
| 20tf | 175 | 115 | 200 | 200 | ||
| 30tf |

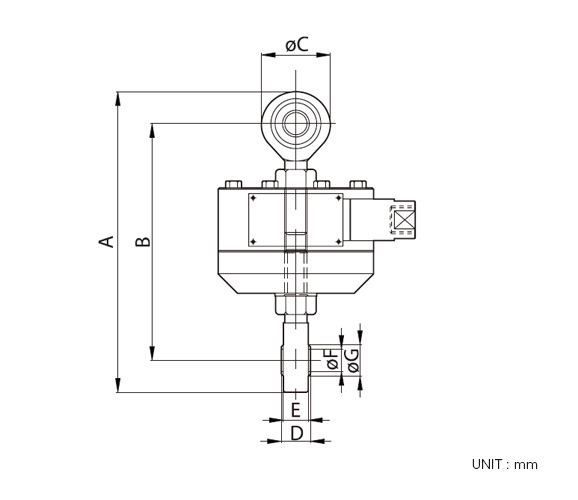

| Capa | A | B | C | D | E | F | G |
| 1tf | 216.7(Max) | 170.7(Max) | 50 | 21 | 18 | 16 | 19.3 |
| 2tf | |||||||
| 3tf | |||||||
| 5tf | 257.0(Max) | 197.0(Max) | 60 | 23 | 22 | 18 | 21.9 |
| 10tf | 430.0(Max) | 328.0(Max) | 102 | 28 | 27 | 22 | 25.8 |
| 20tf | 558.0(Max) | 423.0(Max) | 135 | 40 | 38 | 39 | 45 |
| 30tf |
